ATU Wastewater Systems / Davey D42 A/B Submersible Drainage Pump

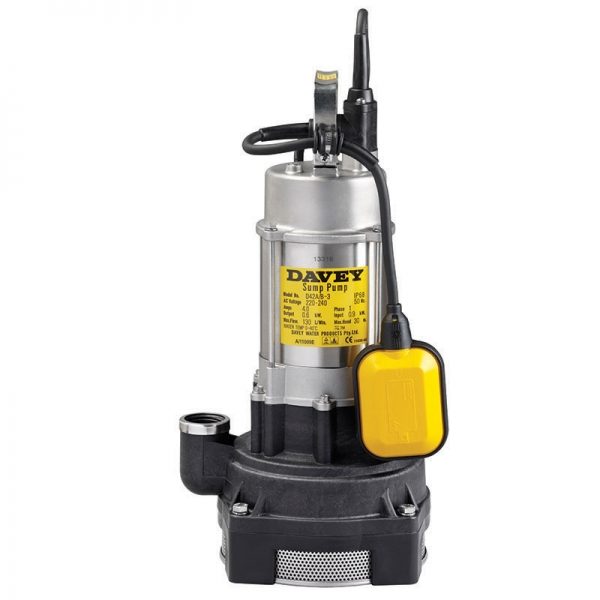

Davey D42 A/B Submersible Drainage Pump

$585.00

Operating Limits
Capacities to 140 LT/min
Max Total head 32
Max submergence 12m
Max operating temperature 40 c
Minimum soft solids  1.9 mm O.D.
Outlet size 1″ (F)

Electrical Data
Supply Voltage 220-240 v  50 Hz single phase
*Cable Length  10 metres
Output (watts) 600
Start (amps) 14
Run (amps) 4.3
Speed  2 pole , 2850rpm
Input Power (P1 )   1.00 kw
Output Power (P2 )  0.60 kw
Insulation class Class F
IP rating  X8
Starting P.S.C
* The D42 A/B Models are also available with a 20 meter length power lead

Category:

Description

Submersible sump pump with twin impeller design for higher pressure, up to 32m head.

Float Switch fitted for automatic operation

Double mechanical seal,one in the oil bath on the motor and an extra mechanical seal on pump for superior reliability and a long service life.

Corrosion resistant 304 stainless steel shaft, motor shell and fasteners for longer service life

Centrifugal multi stage 3 impeller design for low flow applications

In built automatic thermal overload to protect the motor in the event of blockage or voltage supply problems

HO7RNF oil resistant leads , 10 meters long with 3 pin power plug for longer life in dirty water and easy connection to the mains power supply
